Lab Aplikasi Kimia Dan Pelayanan
Infomasi Gedung
Instrument

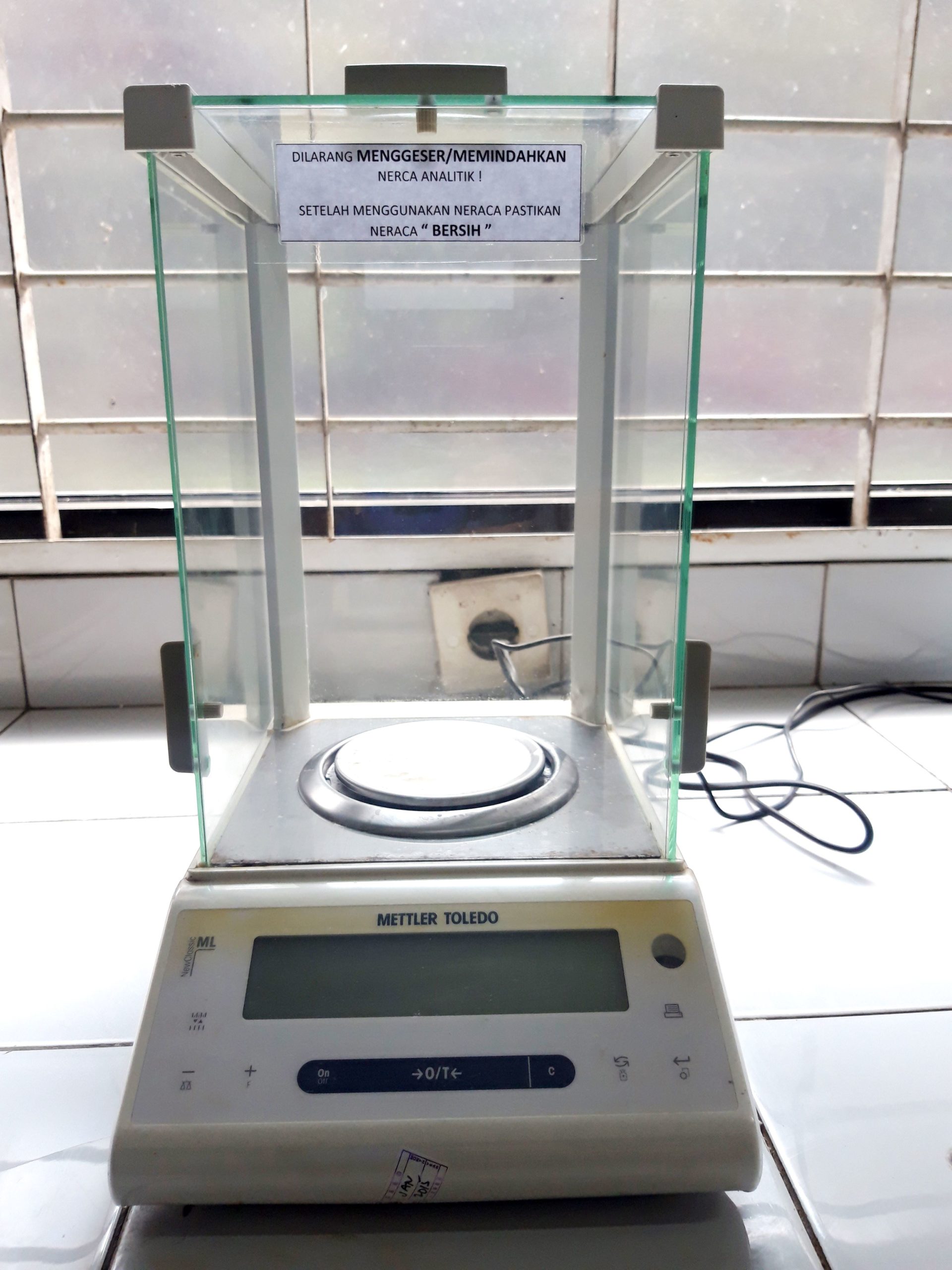

Neraca Analitis
Brand: mettler Toledo
Type : ML204/02
Capacity (g) 220
Readability (mg) 01
Calibration type internal
Brand: Ohaus
Capacity (g) 220
Readability (mg) 01
Neraca Presisi
Brand : Mettler Toledo
Type: PL602-S
Maximum Capacity 610 g
Readability 0.01 g
Oven
Brand: Memmert
Type: UM 400
Temp. Range 30-220 oC
Outer dimensions: 68 x 55 x 50cm (HxWxD)
Inner dimensions: 38.5 x 39.5 x 27.5cm (HxWxD)
Sentrifugasi
Brand: Hettich
Type EBA 20
Capacity : 8 X 15 mL
Max RPM : 6000/3421 (fixed angle)
pH meter
Mettler Toledo
TypeFEP20-Basic Meter
Accuracy (Temperature)±0.5°C
Accuracy (pH)±0.01
Temperature Range (Metric)0°C to 100°C
Range (pH)0 to 14
Resolution (mV)1mV
Range (mV)-1999 to 1999 mV
Resolution (pH)0.01
Resolution (Temperature)0.1°C
Temperature Range (English)32°F to 21
Polarimeter
Brand : Atago
Type: polax 2L
Angle of Rotation Resolution 0.05°
Angle of Rotation Accuracy ±0.10°
Angle of Rotation Measurement Range –179.95 to +180.00°
International Sugar Scale Resolution 0.1°Z
International Sugar Scale
Measurement Range –130.00 to +130.00°Z
Dimensions 43L x 22W x 30H cm (167/8 x 85/8 x 1113/16")
Temperature Range Accuracy 5 to 40°C
Melting point apparatus
Brand: Stuart
Type: SMP3
temperature measuring range ≤360 °C
resolution: 0.1 °C
(Accuracy ± 0.5° C at 20° C, ± 1.5°C at 360° C)
Capacity 3 samples
Spektrofotometer
Brand: janway
Type 6305
Wavelength range 198 to 1000nm
Wavelength resolution 1nm
Wavelength accuracy ±2nm
Spectral bandwidth 8nm, 6nm over UV range
Transmittance 0 to 199.9%T
Absorbance –0.300 to 1.999A
Accuracy ±1%T
Resolution 0.1%T, 0.001A
Stray light <0.5%T at 220 and 340nm
Noise <0.001A at 0A at 400nm
Stability <0.002A/h after 30 minutes
Concentration range –300 to 1999
Concentration resolution 0.1 to 1
Units ppm, mg/l, g/l, M, %, blank
Factor 0 to 199.9, 1000 to 9999
Light source Xenon lamp
Heating mantle
Brand: mettler Toledo
Type : ML204/02
Capacity (g) 220
Readability (mg) 01
Calibration type internal
Brand: Ohaus
Capacity (g) 220
Readability (mg) 01
Hot plate stirer
Brand: mettler Toledo
Type : ML204/02
Capacity (g) 220
Readability (mg) 01
Calibration type internal
Brand: Ohaus
Capacity (g) 220
Readability (mg) 01
Tanur
Brand: mettler Toledo
Type : ML204/02
Capacity (g) 220
Readability (mg) 01
Calibration type internal
Brand: Ohaus
Capacity (g) 220
Readability (mg) 01
